26-3P15-6FA3 Powerhouse™ Pulleys

26-3P15-6FA3, 3MR-26S-15, TP3A3W15-

Product Details for 26-3P15-6FA3

Comparable to: 26-3P15-6FA3, 3MR-26S-15, TP3A3W15-

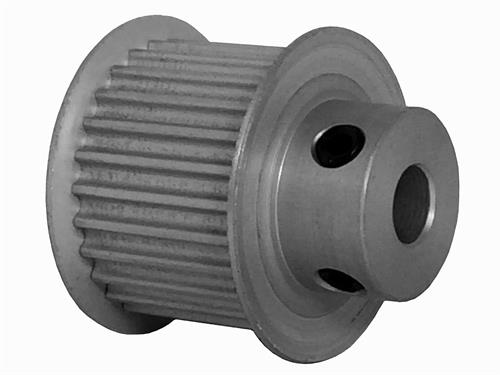

26-3P15-6FA3, Timing Pulley, Powerhouse, 1/4 Inch Bore, Aluminum

Specifications

Product Number 26-3P15-6FA3
Teeth 26
Tooth Style GT 3mm
For Belt Width (mm) 15.000
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 0.977
Outside Diameter (in) 0.947
Flange Diameter (in) 1.105
Face Width (in) 0.742
Overall Length (in) 1.057
Hub Diameter (in) 0.625
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.636
Unit System Inch
Max. Bore (in) 0.375
Weight (lb) 0.05
Part Number Cross Reference 26-3P15-6FA3, 3MR-26S-15, TP3A3W15-
