26-5M15-6FA3, Timing Pulley

26-5M15-6FA3 - Aluminum Powerhouse®HTD® Pulleys

Product Details for 26-5M15-6FA3

Comparable to: A 6A25-026DF1508, A6A25-026DF1508, P26-5M-15AL, 78821022, PT026G08L15T

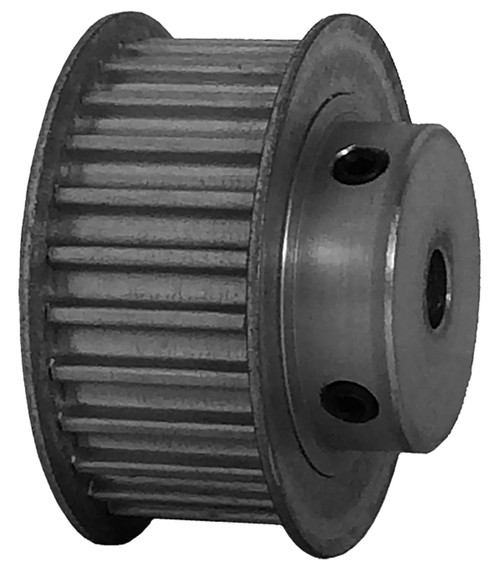

Click to Enlarge

26-5M15-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 26-5M15-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 26-5M15-6FA3
Teeth 26
Tooth Style HTD 5mm
For Belt Width (mm) 15
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.629
Outside Diameter (in) 1.584
Flange Diameter (in) 1.750
Face Width (in) 0.780
Overall Length (in) 1.087
Hub Diameter (in) 1.063
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.650
Unit System Inch
MOQ 1
Weight (lb) 0.14
Part Number Cross Reference A 6A25-026DF1508, A6A25-026DF1508, P26-5M-15AL, 78821022, PT026G08L15T
Set Screw Quantity 2
