26-8P30-1108, Timing Pulley

26-8P30-1108 - Steel Powerhouse® Pulleys

26-8P30-1108

Click to Enlarge

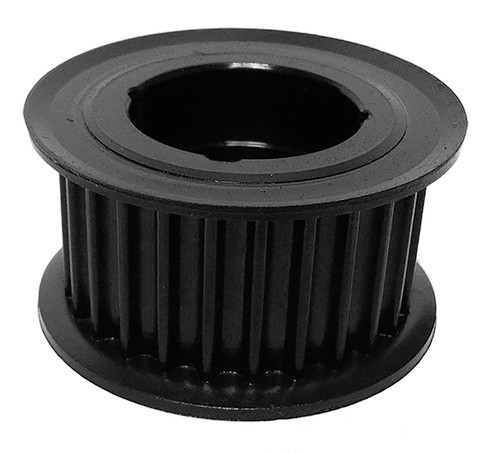

26-8P30-1108, Timing Pulley, Steel, Black Oxide,

Learn more about 26-8P30-1108 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 26-8P30-1108
Teeth 26
Tooth Style 8P
For Belt Width (mm) 30
Type A1F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1108
Pitch Diameter (in) 2.607
Outside Diameter (in) 2.553
Flange Diameter (in) 2.953
Face Width (in) 1.500
Overall Length (in) 1.500
Min. Bore (in) 0.500
Pulley Belt Width (in) 1.260
Unit System Inch
Bushing 1108
P.D. (mm) 66.00
O.D. (mm) 64.80
MOQ 1
Weight (lb) 1.31
Part Number Cross Reference 26-8P30-1108
