26H200-6FS10, Timing Pulley

26H200-6FS10 - Steel Imperial Pitch Pulleys

26H200-6FS10

Click to Enlarge

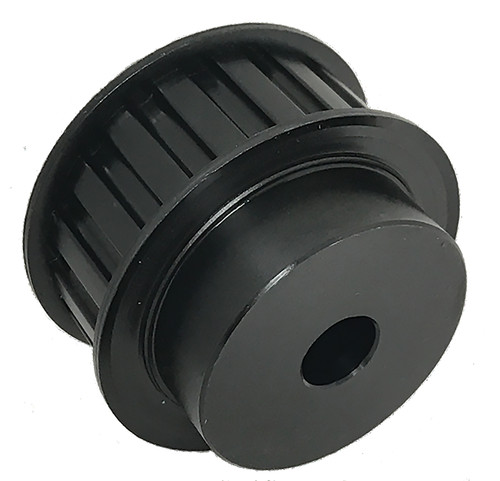

26H200-6FS10, Timing Pulley, Steel, Black Oxide,

Learn more about 26H200-6FS10 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 26H200-6FS10
Teeth 26
Tooth Style H
For Belt Width (in) 2.0000
Type 6F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1.000
Bore Description 1 Inch Minimum Plain Bore
Pitch Diameter (in) 4.138
Outside Diameter (in) 4.084
Flange Diameter (in) 4.369
Face Width (in) 2.344
Overall Length (in) 3.406
Hub Diameter (in) 3.375
Min. Bore (in) 1
Pulley Belt Width (in) 2.094
Unit System Inch
P.D. (mm) 105.00
O.D. (mm) 103.70
MOQ 1
Weight (lb) 9.56
Part Number Cross Reference 26H200, 26HB200, 26H200 X 1 MPB, 26H200MPB, P26H200, P26H200-PB, 26H200-6FS10, 114362, 26H200-6FS10
