26L075-6FS7, Timing Pulley

26L075-6FS7

Click to Enlarge

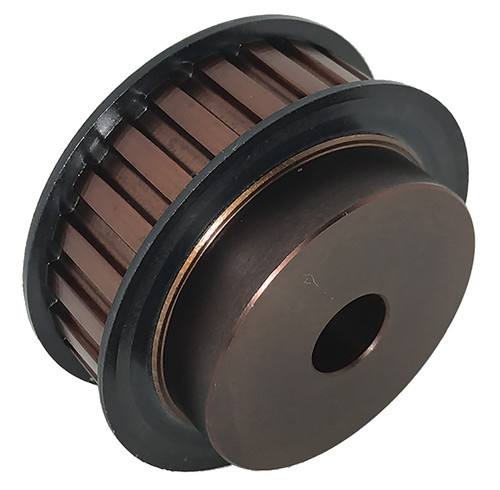

26L075-6FS7, Timing Pulley, Steel, Black Oxide,

Learn more about 26L075-6FS7 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	26L075-6FS7
Teeth	26
Tooth Style	L
For Belt Width (in)	0.7500
Type	6F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.625
Bore Description	5/8 Inch Minimum Plain Bore
Pitch Diameter (in)	3.104
Outside Diameter (in)	3.074
Flange Diameter (in)	3.330
Face Width (in)	1.000
Overall Length (in)	1.500
Hub Diameter (in)	2.250
Min. Bore (in)	0.625
Pulley Belt Width (in)	0.820
Unit System	Inch
P.D. (mm)	79.00
O.D. (mm)	78.10
MOQ	1
Weight (lb)	2.30
Part Number Cross Reference	26L075, 26LB075, 26L075 X 5/8 MPB, 26L075MPB, P26L075, P26L075-PB, 26L075-6FS7, 114319, 26L075-6FS7
