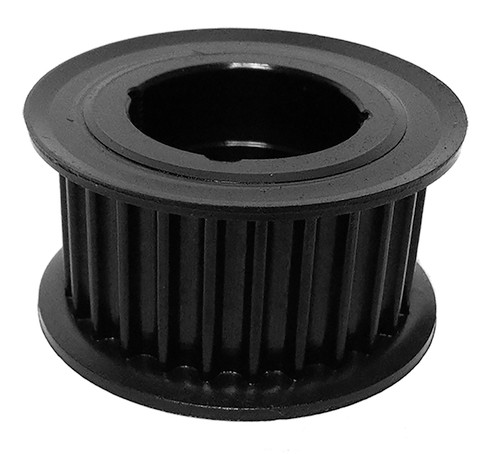

27-8P30-1108, Timing Pulley

27-8P30-1108

Click to Enlarge

27-8P30-1108, Timing Pulley, Steel, Black Oxide,

Learn more about 27-8P30-1108 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	27-8P30-1108
Teeth	27
Tooth Style	8P
For Belt Width (mm)	30.00
Type	A1F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 1108 Bushing
Pitch Diameter (in)	2.707
Outside Diameter (in)	2.653
Flange Diameter (in)	3.100
Face Width (in)	1.500
Overall Length (in)	1.500
Min. Bore (in)	0.5
Pulley Belt Width (in)	1.260
Unit System	Inch
Bushing	1108
P.D. (mm)	69.00
O.D. (mm)	67.40
MOQ	1
Weight (lb)	1.26
Part Number Cross Reference	P27-8MGT-30, B278M30TL, P27-8M30-1108, 27-8P30-1108, 27-8P30-1108
