28-14MX37-2012, Timing Pulley

28-14MX37-2012 - Cast Iron Powerhouse® MX Pulleys

28-14MX37-2012

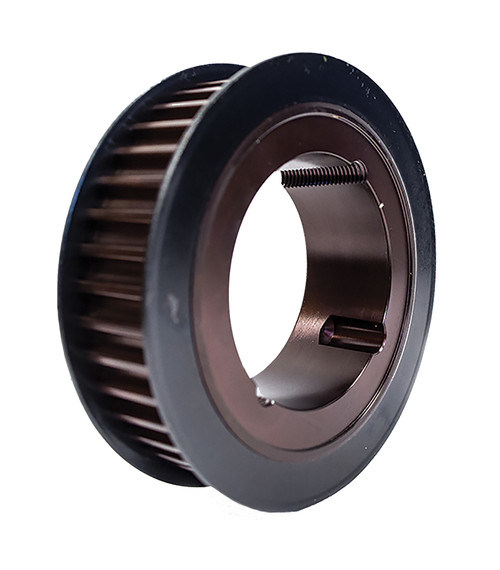

Click to Enlarge

28-14MX37-2012, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 28-14MX37-2012 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 28-14MX37-2012
Teeth 28
Tooth Style 14MX
For Belt Width (mm) 37.00
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 2012 Bushing
Pitch Diameter (in) 4.912
Outside Diameter (in) 4.802
Flange Diameter (in) 5.562
Face Width (in) 1.690
Overall Length (in) 2.000
Min. Bore (in) 0.5
Pulley Belt Width (in) 1.740
Unit System Inch
Bushing 2012
P.D. (mm) 125.00
O.D. (mm) 122.00
MOQ 1
Weight (lb) 5.36
Part Number Cross Reference 14MX-28S-37, 14MX28S37-2012, B14MCS-28-37, 28G-14M-37-2012, 20296105, 14MX-28S-37-2012 HT500 SPKT, 14MPC28S37, 14MX28S37-2012, 28-14MX37-2012, 482052, 28-14MX37-2012

Comparable to: 14MX-28S-37, 14MX28S37-2012, B14MCS-28-37, 28G-14M-37-2012, 20296105, 14MX-28S-37-2012 HT500 SPKT, 14MPC28S37, 14MX28S37-2012, 28-14MX37-2012, 482052, 28-14MX37-2012
