28-2P06-6FA3, Timing Pulley

28-2P06-6FA3 - Aluminum Powerhouse® Pulleys

28-2P06-6FA3

Click to Enlarge

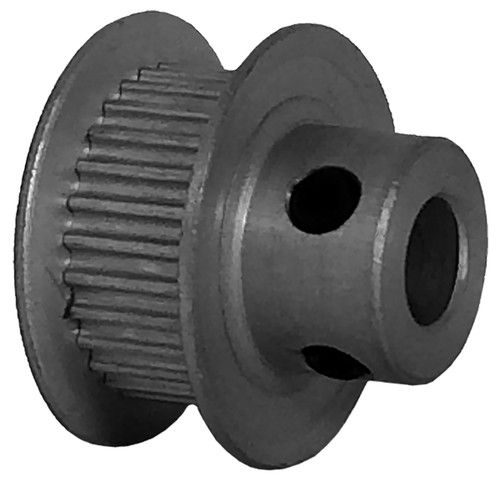

28-2P06-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 28-2P06-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 28-2P06-6FA3
Teeth 28
Tooth Style 2P
For Belt Width (mm) 6.00
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 0.702
Outside Diameter (in) 0.682
Flange Diameter (in) 0.895
Face Width (in) 0.389
Overall Length (in) 0.687
Hub Diameter (in) 0.494
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.290
Unit System Inch
P.D. (mm) 18.00
O.D. (mm) 17.30
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference A 6A51-028DF0608, A6A51-028DF0608, 2MR-28S-06, 2MR-28S-06, TP2A3W6-28, 28-2GT06-1A X 1/4, 28-2P06-6FA3, 28-2P06-6FA3
Set Screw Quantity 2

Comparable to: A 6A51-028DF0608, A6A51-028DF0608, 2MR-28S-06, 2MR-28S-06, TP2A3W6-28, 28-2GT06-1A X 1/4, 28-2P06-6FA3, 28-2P06-6FA3
