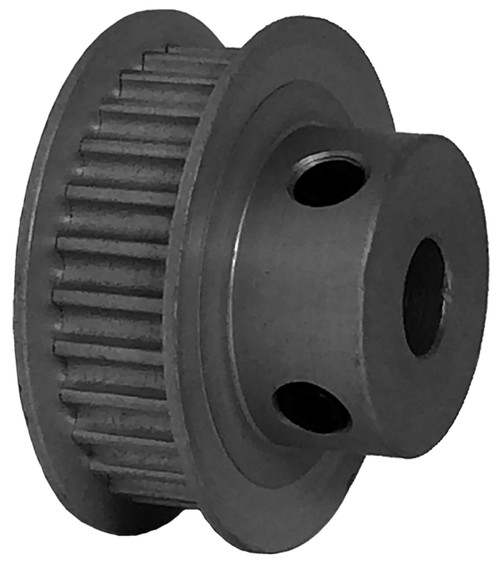

28-3P06-6FA3, Timing Pulley

28-3P06-6FA3

Click to Enlarge

28-3P06-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 28-3P06-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	28-3P06-6FA3
Teeth	28
Tooth Style	3P
For Belt Width (mm)	6.00
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	0.250
Bore Description	1/4 Inch Finished Bore
Pitch Diameter (in)	1.053
Outside Diameter (in)	1.023
Flange Diameter (in)	1.173
Face Width (in)	0.386
Overall Length (in)	0.691
Hub Diameter (in)	0.701
Min. Bore (in)	0.25
Pulley Belt Width (in)	0.280
Unit System	Inch
P.D. (mm)	27.00
O.D. (mm)	26.00
MOQ	1
Weight (lb)	0.04
Part Number Cross Reference	A 6A53-028DF0608, A6A53-028DF0608, 3MR-28S-06, 3MR-28S-06 6F, 28-3P06-6FA3, 28-3P06-6FA3
Set Screw Quantity	2
