28-3P15-6FA5, Timing Pulley

28-3P15-6FA5 - Aluminum Powerhouse® Pulleys

Product Details for 28-3P15-6FA5

Comparable to: 28-3P15-6FA5

Click to Enlarge

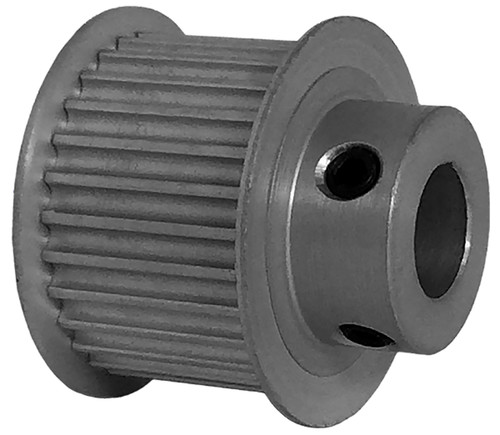

28-3P15-6FA5, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 28-3P15-6FA5 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.


Product Number 28-3P15-6FA5
Teeth 28
Tooth Style GT 3mm
For Belt Width (mm) 15.000
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 3/8 Inch Finished Bore
Pitch Diameter (in) 1.053
Outside Diameter (in) 1.023
Flange Diameter (in) 1.173
Face Width (in) 0.742
Overall Length (in) 1.057
Hub Diameter (in) 0.701
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.375
Unit System Inch
Max. Bore (in) 0.451
Weight (lb) 0.04
Part Number Cross Reference 28-3P15-6FA5
