28-5M09-6FA3, Timing Pulley

28-5M09-6FA3 - Aluminum Powerhouse®HTD® Pulleys

28-5M09-6FA3

Click to Enlarge

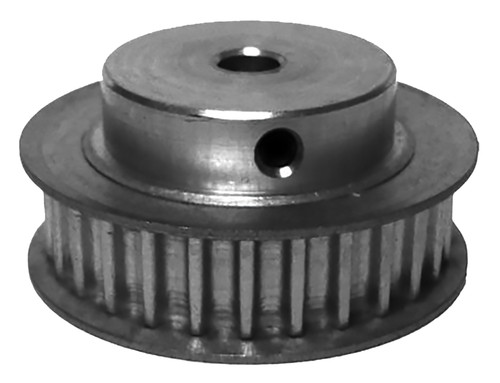

28-5M09-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 28-5M09-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 28-5M09-6FA3
Teeth 28
Tooth Style HTD5mm
For Belt Width (mm) 9.00
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 1.754
Outside Diameter (in) 1.709
Flange Diameter (in) 1.875
Face Width (in) 0.540
Overall Length (in) 0.852
Hub Diameter (in) 1.187
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.420
Unit System Inch
P.D. (mm) 45.00
O.D. (mm) 43.40
MOQ 1
Weight (lb) 0.15
Part Number Cross Reference A 6A25-028DF0908, A6A25-028DF0908, P28-5M-09AL, 28M5-L09M-6F, PT028G08L09T, 28-5M-09 X 1/4, 28-5M09-6FA3, 28-5M09-6FA3
Set Screw Quantity 2

Comparable to: A 6A25-028DF0908, A6A25-028DF0908, P28-5M-09AL, 28M5-L09M-6F, PT028G08L09T, 28-5M-09 X 1/4, 28-5M09-6FA3, 28-5M09-6FA3
