28-5M09M6FA8, Timing Pulley

28-5M09M6FA8 - Aluminum Powerhouse®HTD® Pulleys

Product Details for 28-5M09M6FA8

Comparable to: A 6A25M028DF0908, A6A25M028DF0908, TP5A8W9M-28

Click to Enlarge

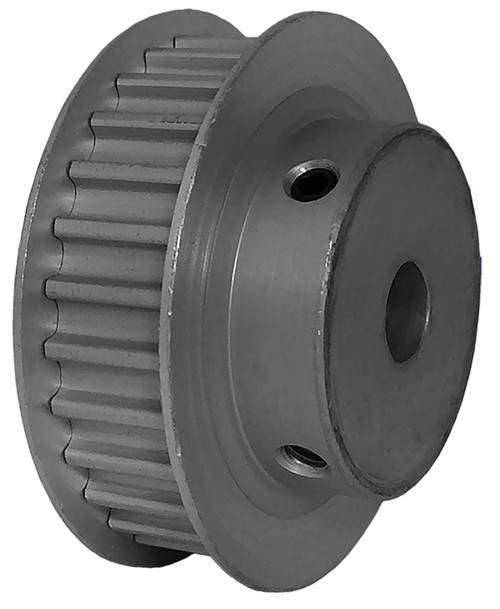

28-5M09M6FA8, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 28-5M09M6FA8 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 28-5M09M6FA8
Teeth 28
Tooth Style HTD 5mm
For Belt Width (mm) 9
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 8 mm Finished Bore
Bore (mm) 8.00
Pulley Belt Width (mm) 10.60
Unit System Metric
P.D. (mm) 44.50
O.D. (mm) 43.40
Flange Diameter (mm) 47.60
Face Width (mm) 13.90
Overall Length (mm) 21.80
Hub Diameter (mm) 30.20
MOQ 1
Weight (lb) 0.15
Part Number Cross Reference A 6A25M028DF0908, A6A25M028DF0908, TP5A8W9M-28
Set Screw Quantity 2
