28-8MX36-6FS6, Timing Pulley

28-8MX36-6FS6 - Steel Powerhouse® MX Pulleys

Product Details for 28-8MX36-6FS6

Comparable to: PB8MX-28S-36, 77153028, TB 8M-28S-36, 2765477, PB8MCS-28-36, 28G-8M-36-MPB, 20296049, 8MPC28S36MPB, GTR-28G-8M-36

Click to Enlarge

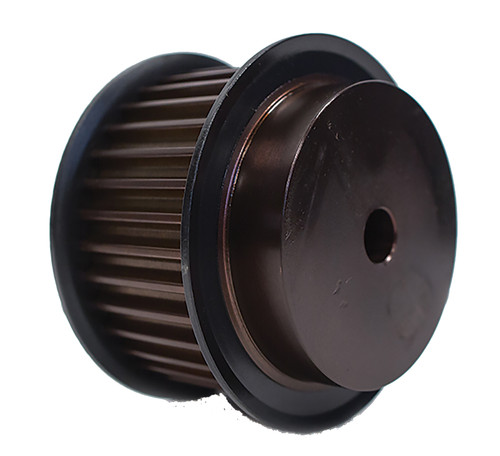

28-8MX36-6FS6, Timing Pulley, Steel, Black Oxide,

Learn more about 28-8MX36-6FS6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 28-8MX36-6FS6
Teeth 28
Tooth Style 8MX
For Belt Width (mm) 36
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 2.807
Outside Diameter (in) 2.744
Flange Diameter (in) 3.150
Face Width (in) 1.859
Overall Length (in) 2.438
Hub Diameter (in) 2.344
Min. Bore (in) 0.500
Pulley Belt Width (in) 1.620
Unit System Inch
MOQ 1
Weight (lb) 3.51
Part Number Cross Reference PB8MX-28S-36, 77153028, TB 8M-28S-36, 2765477, PB8MCS-28-36, 28G-8M-36-MPB, 20296049, 8MPC28S36MPB, GTR-28G-8M-36
