28-8P20-1108, Timing Pulley

28-8P20-1108 - Steel Powerhouse® Pulleys

Product Details for 28-8P20-1108

Comparable to: P28-8MGT-20, 77082028, 2762524, B288M20TL, P28-8M-20-1108, 20182763

Click to Enlarge

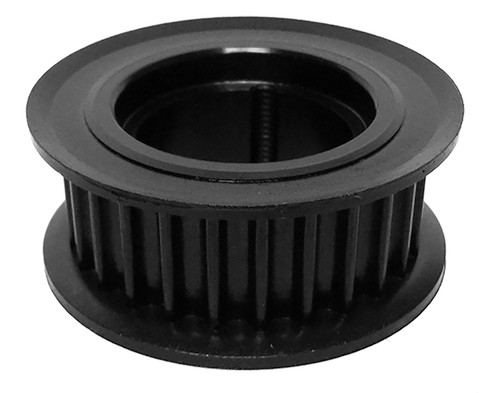

28-8P20-1108, Timing Pulley, Steel, Black Oxide,

Learn more about 28-8P20-1108 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 28-8P20-1108
Teeth 28
Tooth Style 8P
For Belt Width (mm) 20
Type A1F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1108
Pitch Diameter (in) 2.807
Outside Diameter (in) 2.753
Flange Diameter (in) 3.150
Face Width (in) 1.130
Overall Length (in) 1.130
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.890
Unit System Inch
Bushing 1108
MOQ 1
Weight (lb) 1.28
Part Number Cross Reference P28-8MGT-20, 77082028, 2762524, B288M20TL, P28-8M-20-1108, 20182763
