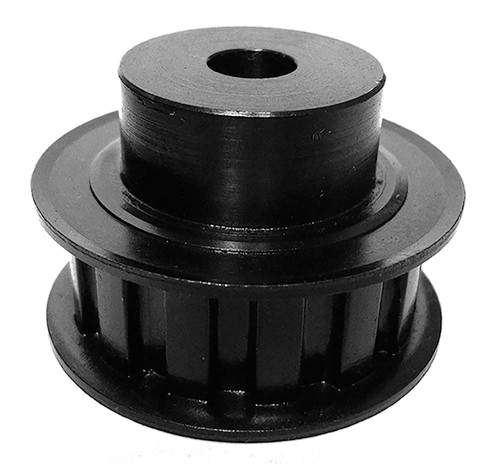

28L050-6FS6, Timing Pulley

28L050-6FS6

Click to Enlarge

28L050-6FS6, Timing Pulley, Steel, Black Oxide,

Learn more about 28L050-6FS6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	28L050-6FS6
Teeth	28
Tooth Style	L
For Belt Width (in)	0.5000
Type	6F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.500
Bore Description	1/2 Inch Minimum Plain Bore
Pitch Diameter (in)	3.342
Outside Diameter (in)	3.312
Flange Diameter (in)	3.566
Face Width (in)	0.750
Overall Length (in)	1.250
Hub Diameter (in)	2.250
Min. Bore (in)	0.5
Pulley Belt Width (in)	0.570
Unit System	Inch
P.D. (mm)	85.00
O.D. (mm)	84.10
MOQ	1
Weight (lb)	2.14
Part Number Cross Reference	A 6C4-28DFB5016, A6C4-28DFB5016, 28L050, 28LB050, 28L050 X 1/2 MPB, 28L050MPB, P28L050, P28L050-PB, 28L050-6FS6, 114309, 28L050-6FS6
