28T10-PS160A, Timing Pulley Stock

28T10-PS160A, A6A38M028T16, A 6A38M028T16, 28T10-PS-160

Product Details for 28T10-PS160A

Comparable to: A 6A38M028T16, A6A38M028T16, 28T10-PS-160, T1028

Click to Enlarge

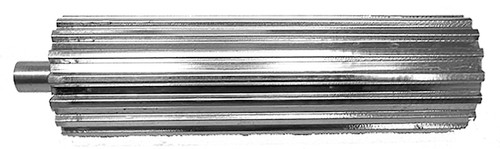

28T10-PS160A, Timing Pulley Stock, Aluminum

Learn more about 28T10-PS160A Timing Pulley Stocks and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 28T10-PS160A
Teeth 28
Tooth Style T10mm
Material Aluminum
Pitch Diameter (in) 3.514
Outside Diameter (in) 3.435
Overall Length (in) 7.300
Unit System Metric
Min. Usable Length (in) 6.300
P.D. (mm) 89.30
O.D. (mm) 87.20
Min. Usable Length (mm) 160.00
Overall Length (mm) 185.00
MOQ 1
Weight (lb) 5.50
Part Number Cross Reference A 6A38M028T16, A6A38M028T16, 28T10-PS-160, T1028
Shank Length (in) 1.0000
