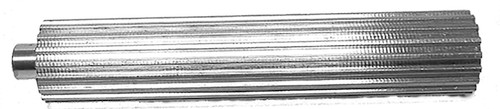

28T5-PS160A, Timing Pulley Stock

28T5-PS160A, A6A34M028T16, A 6A34M028T16, 28T5-PS-160

28T5-PS160A

28T5-PS160A, Timing Pulley Stock, Aluminum

Learn more about 28T5-PS160A Timing Pulley Stocks and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 28T5-PS160A
Teeth 28
Tooth Style T5mm
Material Aluminum
Pitch Diameter (in) 1.762
Outside Diameter (in) 1.722
Overall Length (in) 7.100
Unit System Metric
Min. Usable Length (in) 6.300
P.D. (mm) 44.80
O.D. (mm) 43.70
Min. Usable Length (mm) 160.00
Overall Length (mm) 185.00
MOQ 1
Weight (lb) 1.42
Part Number Cross Reference A 6A34M028T16, A6A34M028T16, 28T5-PS-160, T528, 28T5-PS160A
Shank Length (in) 0.8000

Comparable to: A 6A34M028T16, A6A34M028T16, 28T5-PS-160, T528, 28T5-PS160A
