28XL037-3FA5, Timing Pulley

28XL037-3FA5 - Aluminum Imperial Pitch Pulleys

Product Details for 28XL037-3FA5

Comparable to: 28XL037-3FA5, A 6A3-28H3712, A6A3-28H3712

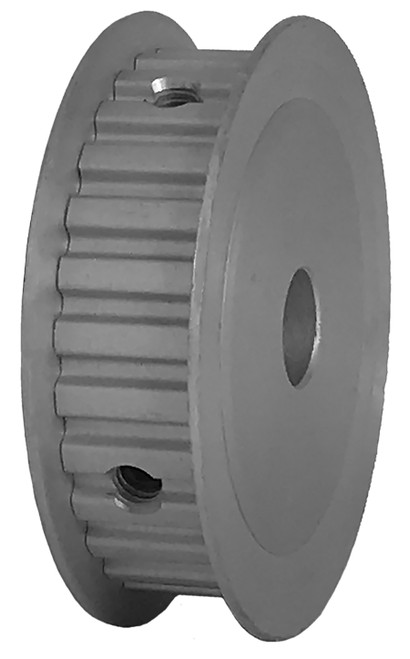

28XL037-3FA5, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 28XL037-3FA5 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 28XL037-3FA5
Teeth 28
Tooth Style XL
For Belt Width (in) 0.375
Type 3F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 3/8 Inch Finished Bore
Pitch Diameter (in) 1.783
Outside Diameter (in) 1.763
Flange Diameter (in) 2.000
Face Width (in) 0.563
Overall Length (in) 0.563
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.375
Pulley Belt Width (in) 0.430
Unit System Inch
Max. Bore (in) 1.4505
Weight (lb) 0.13
Part Number Cross Reference 28XL037-3FA5, A 6A3-28H3712, A6A3-28H3712
