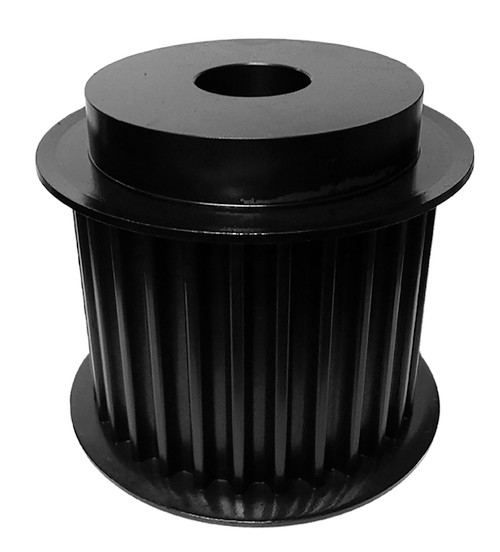

29-14MX90-6FS16, Timing Pulley

29-14MX90-6FS16 - Cast Iron Powerhouse® MX Pulleys

Product Details for 29-14MX90-6FS16

Comparable to: 29-14MX90-6FS16, PB14MX-29S-90, 77169029, PB14MCS-29-90, 29G-14M-90-MPB, 208397

29-14MX90-6FS16, Timing Pulley, Steel, Black Oxide,

Learn more about 29-14MX90-6FS16 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 29-14MX90-6FS16
Teeth 29
Tooth Style GT2 14mm
For Belt Width (mm) 90.000
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1-1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 5.088
Outside Diameter (in) 4.978
Flange Diameter (in) 5.562
Face Width (in) 4.203
Overall Length (in) 5.000
Hub Diameter (in) 4.350
Min. Bore (in) 1.500
Pulley Belt Width (in) 3.880
Unit System Inch
Max. Bore (in) 4.1
Weight (lb) 20.28
Part Number Cross Reference 29-14MX90-6FS16, PB14MX-29S-90, 77169029, PB14MCS-29-90, 29G-14M-90-MPB, 208397
