2AK23x1, V-Belt Pulley

2AK23x1

2AK23x1

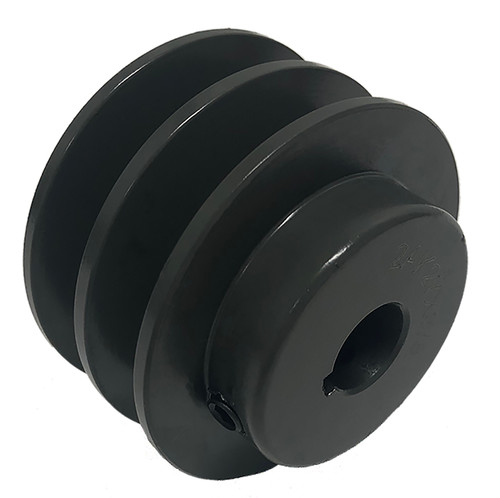

2AK23x1, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 2AK23x1 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 2AK23x1
Type 1
Material Cast Iron
Bore Type Finished Bore
Bore (in) 1.000
Bore Description 1 inch Finished Bore
Outside Diameter (in) 2.350
Face Width (in) 1.375
Overall Length (in) 1.844
Hub Diameter (in) 1.875
Min. Bore (in) 0.625
Unit System Inch
MOQ 1
Pitch Dia. "A" 2.100
Pitch Dia. "3L" 1.760
Sheave Type AK
For Belt Type 4L, 3L, or A
Weight (lb) 1.00
Part Number Cross Reference 2AK23 1, 2AK23x1, 2AK23x1
Grooves 2
Set Screw Quantity 1

Related Products

Comparable to: 2AK23 1, 2AK23x1, 2AK23x1
