2BK120H, V-Belt Pulley

2BK120H, 2BK120-QT, 20179543, 2MBL117

Product Details for 2BK120H

Comparable to: 2BK120H, 2BK120-QT, 20179543, 2BK120, 00754739, 2MBL118, 2BK120QT

Click to Enlarge

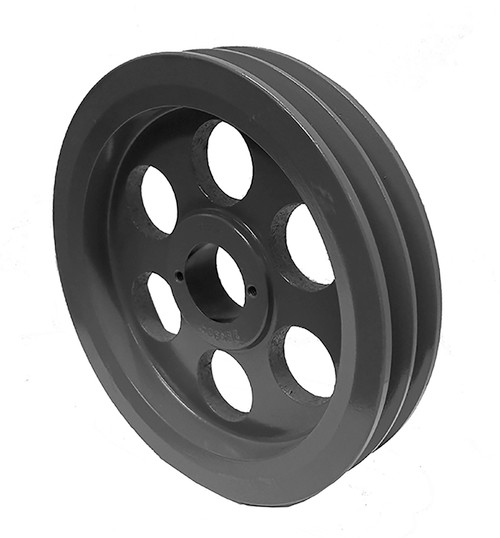

2BK120H, V-Belt Pulley, Cast Iron

Learn more about 2BK120H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 2BK120H
Type 3
Material Cast Iron
Bore Type QD
Bore (in) H
Outside Diameter (in) 11.750
Face Width (in) 1.750
Overall Length (in) 1.750
Min. Bore (in) 0.375
Unit System Inch
Bushing H
MOQ 1
Pitch Dia. "A" 11.000
Pitch Dia. "B" 11.400
Sheave Type BK
For Belt Type 4L, 5L, A, or B
Weight (lb) 11.00
Part Number Cross Reference 2BK120H, 2BK120-QT, 20179543, 2BK120, 00754739, 2MBL118, 2BK120QT
Grooves 2
