2BK140H, V-Belt Pulley

2BK140H, 2BK140-QT, 20179545, 2MBL137

Product Details for 2BK140H

Comparable to: 2BK140H, 2BK140-QT, 20179545, 2BK140, 00754754, 2MBL138, 2BK140QT

Click to Enlarge

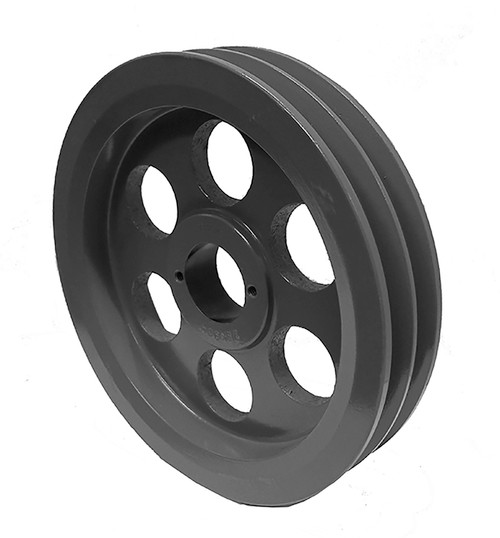

2BK140H, V-Belt Pulley, Cast Iron

Learn more about 2BK140H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 2BK140H
Type 3
Material Cast Iron
Bore Type QD
Bore (in) H
Outside Diameter (in) 13.750
Face Width (in) 1.750
Overall Length (in) 1.750
Min. Bore (in) 0.375
Unit System Inch
Bushing H
MOQ 1
Pitch Dia. "A" 13.000
Pitch Dia. "B" 13.400
Sheave Type BK
For Belt Type 4L, 5L, A, or B
Weight (lb) 14.80
Part Number Cross Reference 2BK140H, 2BK140-QT, 20179545, 2BK140, 00754754, 2MBL138, 2BK140QT
Grooves 2
