2BK40H, V-Belt Pulley

2BK40H

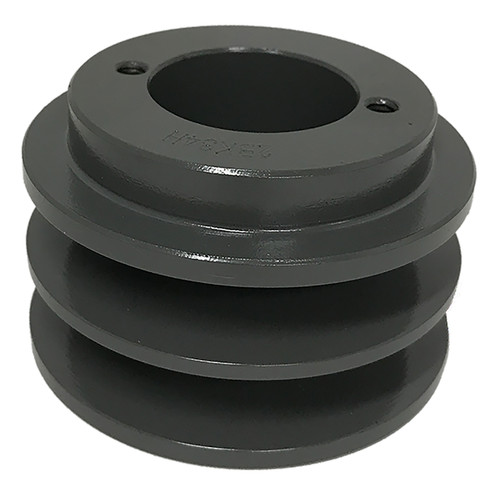

2BK40H, V-Belt Pulley, Cast Iron

Learn more about 2BK40H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	2BK40H
Type	1
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for H Bushing
Outside Diameter (in)	3.950
Face Width (in)	1.750
Overall Length (in)	2.375
Min. Bore (in)	0.375
Unit System	Inch
Bushing	H
MOQ	1
Pitch Dia. "A"	3.200
Pitch Dia. "B"	3.600
Sheave Type	BK
For Belt Type	4L, 5L, A, or B
Weight (lb)	2.40
Part Number Cross Reference	2BK40QT, 2BK40H, 2BK40-QT, 20179551, 2BK40H SHEAVE, 2BK40, 2MBL39, 2BK40H, 2MBL39, 2BK40H
Grooves	2
