2C130SF, V-Belt Pulley

2C130SF, QD2C13

2C130SF

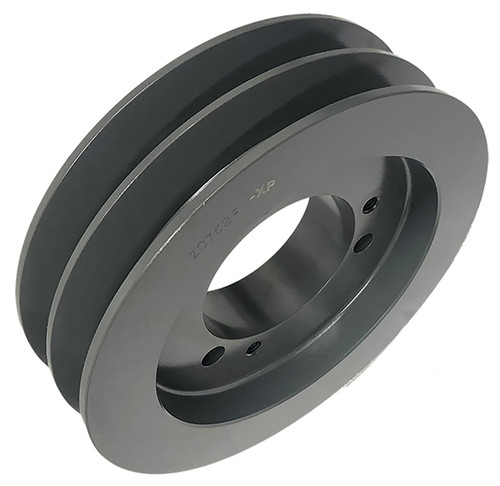

2C130SF, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 2C130SF to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 2C130SF
Type D-3
Material Cast Iron
Bore Type QD
Bore (in) Bored for SF Bushing
Outside Diameter (in) 13.400
Face Width (in) 2.250
Min. Bore (in) 0.500
Unit System Inch
Bushing SF
L (in) 2.0625
MOQ 1
Weight (lb) 27.80
Part Number Cross Reference QD2C13.0, 2C130.SF, 13.0-2C-SF PULLEY, 20178983, 2C13.0, 2/C1300SF, 2C130SF
Grooves 2

Related Products

Comparable to: QD2C13.0, 2C130.SF, 13.0-2C-SF PULLEY, 20178983, 2C13.0, 2/C1300SF, 2C130SF
