30-14MX90-6FS16, Timing Pulley

30-14MX90-6FS16 - Cast Iron Powerhouse® MX Pulleys

Product Details for 30-14MX90-6FS16

Comparable to: 30-14MX90-6FS16, PB14MX-30S-90, 77169030, PB14MCS-30-

Click to Enlarge

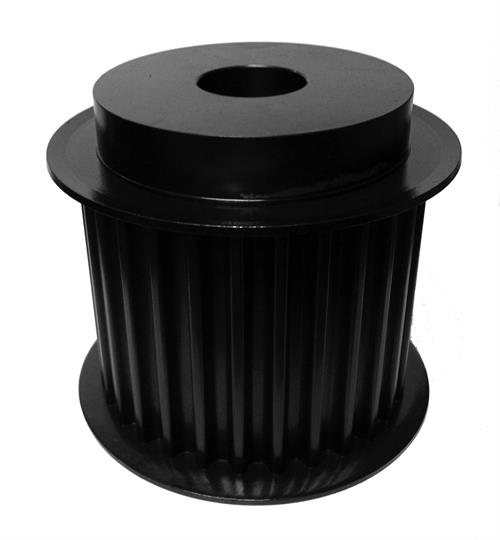

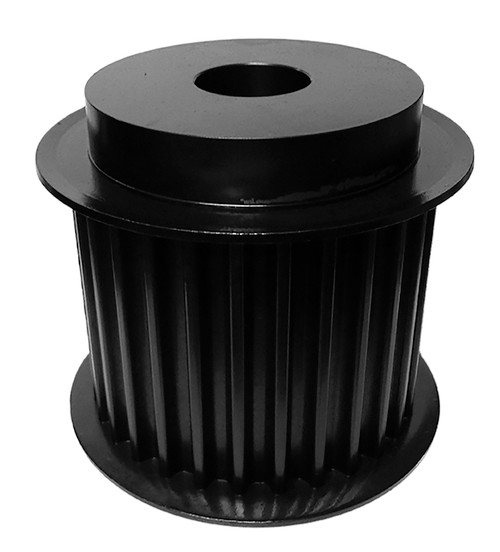

30-14MX90-6FS16, Timing Pulley, Steel, Black Oxide,

Learn more about 30-14MX90-6FS16 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 30-14MX90-6FS16
Teeth 30
Tooth Style GT2 14mm
For Belt Width (mm) 90.000
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1-1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 5.263
Outside Diameter (in) 5.153
Flange Diameter (in) 5.763
Face Width (in) 4.203
Overall Length (in) 5.000
Hub Diameter (in) 4.350
Min. Bore (in) 1.500
Pulley Belt Width (in) 3.880
Unit System Inch
Max. Bore (in) 4.1
Weight (lb) 21.59
Part Number Cross Reference 30-14MX90-6FS16, PB14MX-30S-90, 77169030, PB14MCS-30-
