30-14P55-2517, Timing Pulley

30-14P55-2517 - Cast Iron Powerhouse® Pulleys

30-14P55-2517

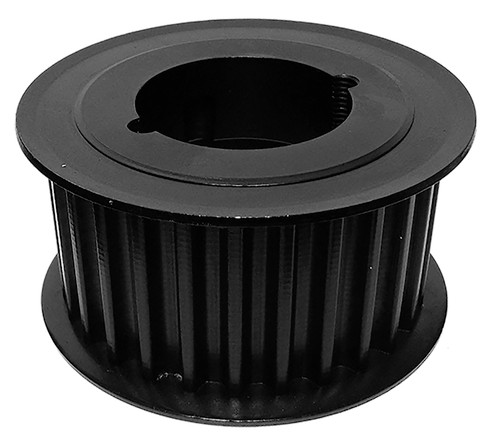

Click to Enlarge

30-14P55-2517, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 30-14P55-2517 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 30-14P55-2517
Teeth 30
Tooth Style 14P
For Belt Width (mm) 55
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 2517 Bushing
Pitch Diameter (in) 5.263
Outside Diameter (in) 5.153
Flange Diameter (in) 5.763
Face Width (in) 2.750
Overall Length (in) 2.750
Min. Bore (in) 0.5
Pulley Belt Width (in) 2.430
Unit System Inch
Bushing 2517
P.D. (mm) 134.00
O.D. (mm) 130.90
MOQ 1
Weight (lb) 7.03
Part Number Cross Reference P30-14MGT-55, B3014M55TL, 30-14P55-2517
