30-3M06-6FA3, Timing Pulley

30-3M06-6FA3 - Aluminum Powerhouse®HTD® Pulleys

Product Details for 30-3M06-6FA3

Comparable to: A 6A23-030DF0608, A6A23-030DF0608, P30-3M-06AL, 78820026, PT030F08L06T, 30-3M-06 X 1/4

Click to Enlarge

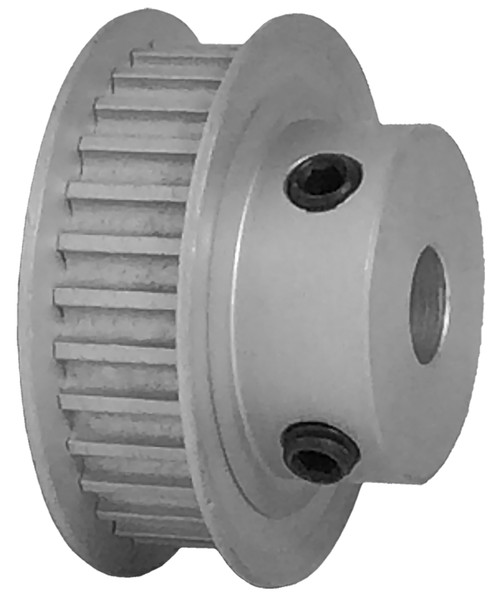

30-3M06-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 30-3M06-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 30-3M06-6FA3
Teeth 30
Tooth Style HTD 3mm
For Belt Width (mm) 6
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.128
Outside Diameter (in) 1.098
Flange Diameter (in) 1.250
Face Width (in) 0.386
Overall Length (in) 0.691
Hub Diameter (in) 0.776
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.280
Unit System Inch
MOQ 1
Weight (lb) 0.05
Part Number Cross Reference A 6A23-030DF0608, A6A23-030DF0608, P30-3M-06AL, 78820026, PT030F08L06T, 30-3M-06 X 1/4
Set Screw Quantity 2
