30-3P15-6FA3, Timing Pulley

30-3P15-6FA3 - Aluminum Powerhouse® Pulleys

Product Details for 30-3P15-6FA3

Comparable to: 3MR-30S-15, 78436034, TP3A3W15-30, 30-3GT15-1A X 1/4, 30-3P15-6FA3, 21071080

Click to Enlarge

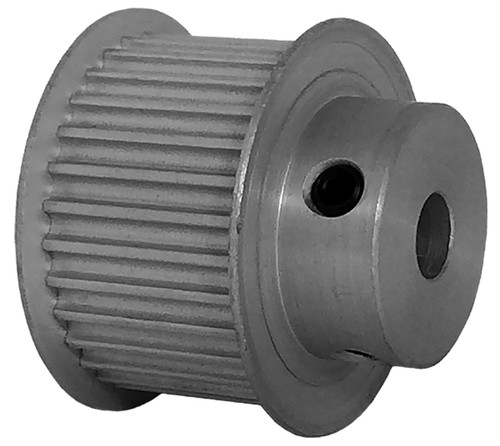

30-3P15-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 30-3P15-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 30-3P15-6FA3
Teeth 30
Tooth Style 3P
For Belt Width (mm) 15
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.128
Outside Diameter (in) 1.098
Flange Diameter (in) 1.250
Face Width (in) 0.742
Overall Length (in) 1.057
Hub Diameter (in) 0.776
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.636
Unit System Inch
MOQ 1
Weight (lb) 0.08
Part Number Cross Reference 3MR-30S-15, 78436034, TP3A3W15-30, 30-3GT15-1A X 1/4, 30-3P15-6FA3, 21071080
Set Screw Quantity 2
