30-5M09-6FA5, Timing Pulley

30-5M09-6FA5 - Aluminum Powerhouse®HTD® Pulleys

Product Details for 30-5M09-6FA5

Comparable to: A 6A25-030DF0912, A6A25-030DF0912

Click to Enlarge

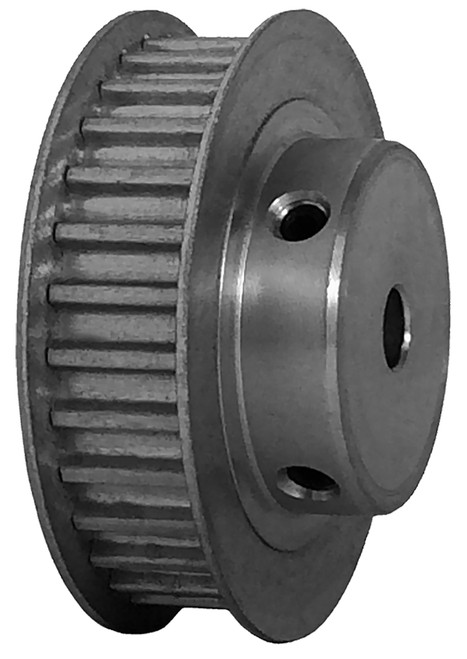

30-5M09-6FA5, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 30-5M09-6FA5 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 30-5M09-6FA5
Teeth 30
Tooth Style HTD 5mm
For Belt Width (mm) 9
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 3/8 Inch Finished Bore
Pitch Diameter (in) 1.880
Outside Diameter (in) 1.835
Flange Diameter (in) 2.000
Face Width (in) 0.547
Overall Length (in) 0.859
Hub Diameter (in) 1.187
Min. Bore (in) 0.375
Unit System Inch
MOQ 1
Weight (lb) 0.18
Part Number Cross Reference A 6A25-030DF0912, A6A25-030DF0912
Set Screw Quantity 2
