30-5M15M6FA8, Timing Pulley

30-5M15M6FA8 - Aluminum Powerhouse®HTD® Pulleys

Product Details for 30-5M15M6FA8

Comparable to: A 6A25M030DF1508, A6A25M030DF1508, 30-5M15M6FA8 AL HTD SPROCKET QTE, 21060045

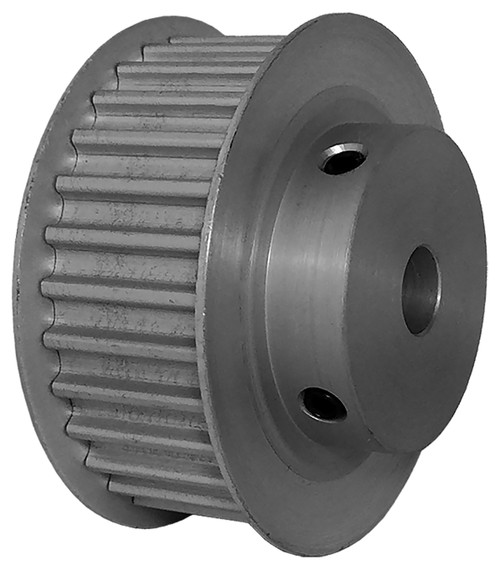

Click to Enlarge

30-5M15M6FA8, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 30-5M15M6FA8 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 30-5M15M6FA8
Teeth 30
Tooth Style HTD 5mm
For Belt Width (mm) 15
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 8 mm Finished Bore
Bore (mm) 8.00
Pulley Belt Width (mm) 16.50
Unit System Metric
P.D. (mm) 47.80
O.D. (mm) 46.60
Flange Diameter (mm) 50.80
Face Width (mm) 19.80
Overall Length (mm) 27.80
Hub Diameter (mm) 30.20
MOQ 1
Weight (lb) 0.22
Part Number Cross Reference A 6A25M030DF1508, A6A25M030DF1508, 30-5M15M6FA8 AL HTD SPROCKET QTE, 21060045
Set Screw Quantity 2
