30-5P15-6FS6, Timing Pulley

30-5P15-6FS6 - Steel Powerhouse® Pulleys

Product Details for 30-5P15-6FS6

Comparable to: P30-5MGT-15-MPB, 77093030

Click to Enlarge

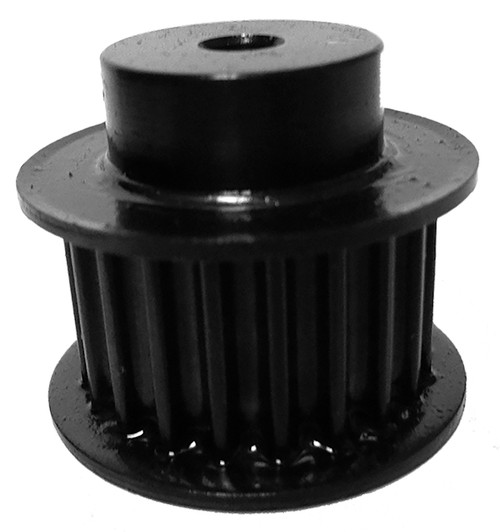

30-5P15-6FS6, Timing Pulley, Steel, Black Oxide,

Learn more about 30-5P15-6FS6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 30-5P15-6FS6
Teeth 30
Tooth Style 5P
For Belt Width (mm) 15
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 1.880
Outside Diameter (in) 1.835
Flange Diameter (in) 2.125
Face Width (in) 0.890
Overall Length (in) 1.340
Hub Diameter (in) 1.440
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.710
Unit System Inch
MOQ 1
Weight (lb) 0.82
Part Number Cross Reference P30-5MGT-15-MPB, 77093030
