3020x15/16, TL Bushing

3020x15/16, 3020X15/16, TL3020 X 15/16, 20352942

Product Details for 3020x15/16

Comparable to: 3020.15/16, 3020X15/16, TL3020 X 15/16, 20352942, 3020X15/16kw, TL302015/16, 3020-15/16, 117108

Click to Enlarge

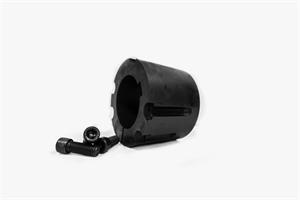

3020x15/16, TL Bushing, C45 Steel, Black Oxide,

Learn more about 3020x15/16 TL Bushings and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 3020x15/16
Material Steel
Finish Black Oxide
Bore Type Finished Bore
Bore (in) 15/16 Inch Finished Bore
Min. Bore (in) 0.875
Unit System Inch
Bushing 3020
A (in) 4.250
B (in) 2.000
C (in) 6.250
D (in) 4.000
Torque Capacity (lb/in) 24,000
Bolt Circle (in) 4.000
MOQ 1
Weight (lb) 6.46
Part Number Cross Reference 3020.15/16, 3020X15/16, TL3020 X 15/16, 20352942, 3020X15/16kw, TL302015/16, 3020-15/16, 117108
Set Screw Quantity 2
