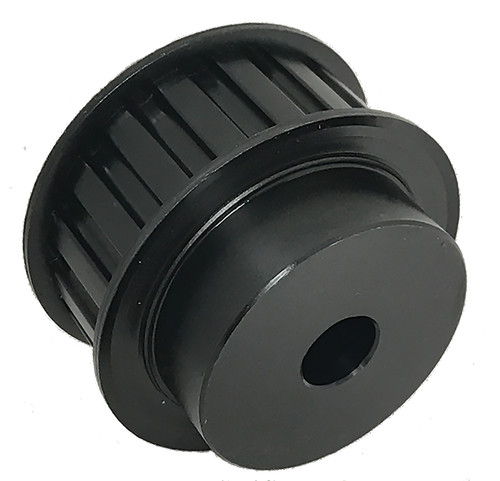

30H100-6FS8, Timing Pulley

30H100-6FS8

Click to Enlarge

30H100-6FS8, Timing Pulley, Steel, Black Oxide,

Learn more about 30H100-6FS8 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	30H100-6FS8
Teeth	30
Tooth Style	H
For Belt Width (in)	1.0000
Type	6F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.750
Bore Description	3/4 Inch Minimum Plain Bore
Pitch Diameter (in)	4.775
Outside Diameter (in)	4.721
Flange Diameter (in)	5.005
Face Width (in)	1.312
Overall Length (in)	2.375
Hub Diameter (in)	3.625
Min. Bore (in)	0.75
Pulley Belt Width (in)	1.062
Unit System	Inch
P.D. (mm)	121.00
O.D. (mm)	119.90
MOQ	1
Weight (lb)	8.44
Part Number Cross Reference	30H100, 30HB100, 30H100 X 3/4 MPB, 30H100MPB, P30H100, 35376664, P30H100-PB, 30H100-6FS8, 114454, 30H100-6FS8
