30LT187-6FA3, Timing Pulley

30LT187-6FA3 - Aluminum Imperial Pitch Pulleys

30LT187-6FA3

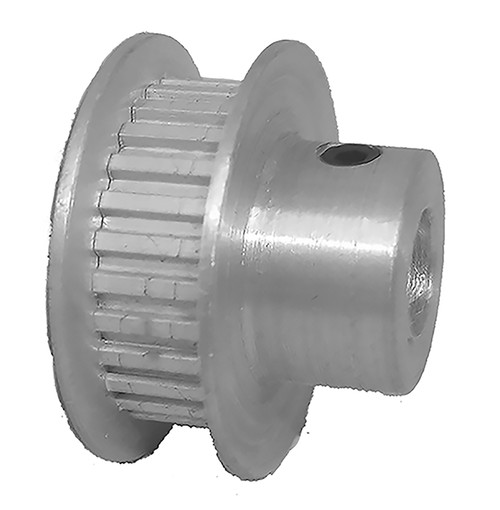

Click to Enlarge

30LT187-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 30LT187-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 30LT187-6FA3
Teeth 30
Tooth Style LT
For Belt Width (in) 0.1875
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 0.779
Outside Diameter (in) 0.759
Flange Diameter (in) 0.945
Face Width (in) 0.324
Overall Length (in) 0.625
Hub Diameter (in) 0.546
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.220
Unit System Inch
P.D. (mm) 20.00
O.D. (mm) 19.30
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference A 6A6-30DF01808, A6A6-30DF01808, 30LT-187 X 1/4-6F, PT030C06L02T, 30M187-1A X 1/4, 30LT187-6FA3, 30LT187-6FA3
Set Screw Quantity 2

Comparable to: A 6A6-30DF01808, A6A6-30DF01808, 30LT-187 X 1/4-6F, PT030C06L02T, 30M187-1A X 1/4, 30LT187-6FA3, 30LT187-6FA3
