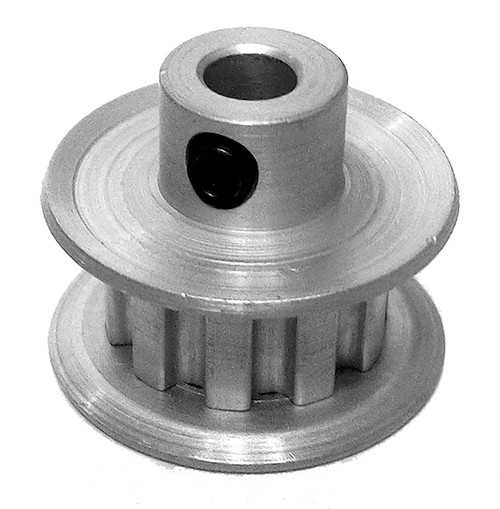

30XL025-6FA7, Timing Pulley

30XL025-6FA7

Click to Enlarge

30XL025-6FA7, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 30XL025-6FA7 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	30XL025-6FA7
Teeth	30
Tooth Style	XL
For Belt Width (in)	0.2500
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	0.625
Bore Description	5/8 Inch Finished Bore
Pitch Diameter (in)	1.910
Outside Diameter (in)	1.890
Flange Diameter (in)	2.125
Face Width (in)	0.438
Overall Length (in)	0.781
Hub Diameter (in)	1.313
Min. Bore (in)	0.625
Pulley Belt Width (in)	0.310
Unit System	Inch
P.D. (mm)	48.00
O.D. (mm)	48.00
MOQ	1
Weight (lb)	0.16
Part Number Cross Reference	30XL025-1A X 5/8, 30XL025-6FA7, 30XL025-6FA7
Set Screw Quantity	2
