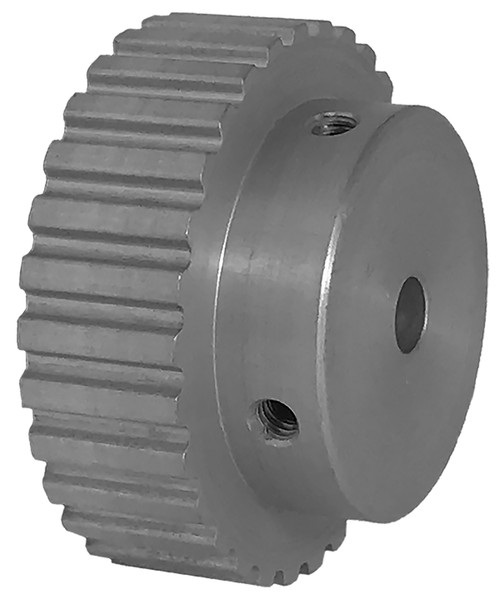

30XL037-6A3, Timing Pulley

30XL037-6A3 - Aluminum Imperial Pitch Pulleys

30XL037-6A3

30XL037-6A3 - Aluminum Imperial Pitch Pulleys Line Drawing

Click to Enlarge

30XL037-6A3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 30XL037-6A3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 30XL037-6A3
Teeth 30
Tooth Style XL
For Belt Width (in) 0.3750
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 1.910
Outside Diameter (in) 1.890
Face Width (in) 0.563
Overall Length (in) 0.937
Hub Diameter (in) 1.375
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.430
Unit System Inch
P.D. (mm) 48.00
O.D. (mm) 48.00
MOQ 1
Weight (lb) 0.21
Part Number Cross Reference 30XL037-6A3
Set Screw Quantity 2
