32-5M09-6FA3, Timing Pulley

32-5M09-6FA3 - Aluminum Powerhouse®HTD® Pulleys

Product Details for 32-5M09-6FA3

Comparable to: A 6A25-032DF0908, A6A25-032DF0908, P32-5M-09AL, 78821027, PT032G08L09T, 32-5M-09 X 1/4

Click to Enlarge

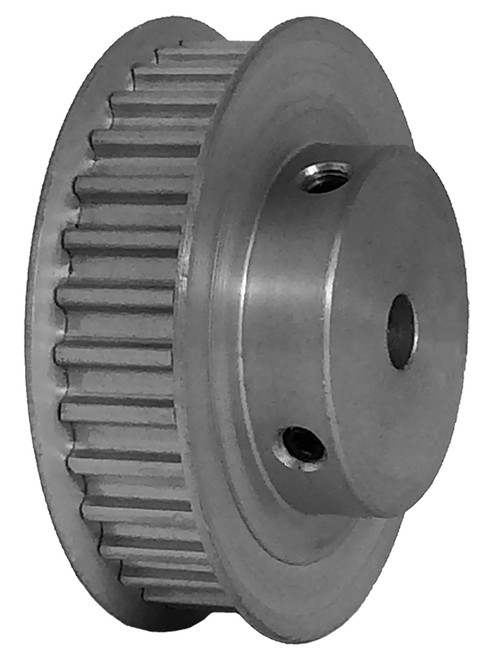

32-5M09-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 32-5M09-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 32-5M09-6FA3
Teeth 32
Tooth Style HTD 5mm
For Belt Width (mm) 9
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 2.005
Outside Diameter (in) 1.960
Flange Diameter (in) 2.125
Face Width (in) 0.540
Overall Length (in) 0.852
Hub Diameter (in) 1.250
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.420
Unit System Inch
MOQ 1
Weight (lb) 0.20
Part Number Cross Reference A 6A25-032DF0908, A6A25-032DF0908, P32-5M-09AL, 78821027, PT032G08L09T, 32-5M-09 X 1/4
Set Screw Quantity 2
