32-5M15-6FS6, Timing Pulley

32-5M15-6FS6 - Steel Powerhouse®HTD® Pulleys

Product Details for 32-5M15-6FS6

Comparable to: P32-5M-15X1/2 MPB, 20182279, 112465, P32-5M-15

Click to Enlarge

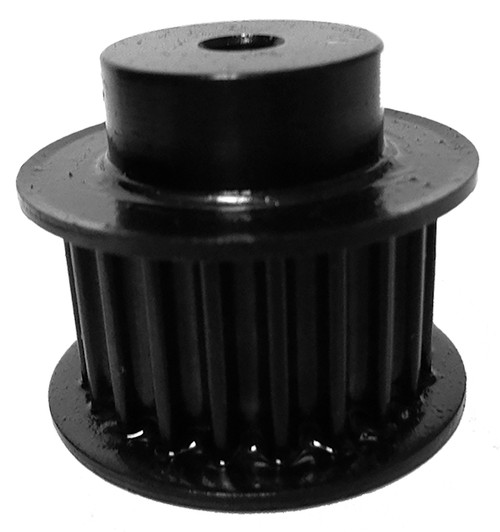

32-5M15-6FS6, Timing Pulley, Steel, Black Oxide,

Learn more about 32-5M15-6FS6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 32-5M15-6FS6
Teeth 32
Tooth Style HTD 5mm
For Belt Width (mm) 15
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 2.005
Outside Diameter (in) 1.960
Flange Diameter (in) 2.125
Face Width (in) 0.840
Overall Length (in) 1.340
Hub Diameter (in) 0.425
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.650
Unit System Inch
MOQ 1
Weight (lb) 0.91
Part Number Cross Reference P32-5M-15X1/2 MPB, 20182279, 112465, P32-5M-15
