32-8M-PS8S, Timing Pulley Stock

32-8M-PS8S, 32-8M-PS-8S

Product Details for 32-8M-PS8S

Comparable to: 32-8M-PS8S, 32-8M-PS-

Click to Enlarge

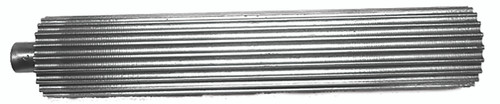

32-8M-PS8S, Timing Pulley Stock, Steel

Learn more about 32-8M-PS8S Timing Pulley Stocks and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 32-8M-PS8S
Teeth 32
Tooth Style HTD 8mm
Material Steel
Pitch Diameter (in) 3.208
Outside Diameter (in) 3.156
Overall Length (in) 9.000
Unit System Inch
Min. Usable Length (in) 8.000
P.D. (mm) 81.50
O.D. (mm) 80.20
Weight (lb) 15.04
Part Number Cross Reference 32-8M-PS8S, 32-8M-PS-
