32-8MX36-6FS6, Timing Pulley

32-8MX36-6FS6 - Cast Iron Powerhouse® MX Pulleys

Product Details for 32-8MX36-6FS6

Comparable to: PB8MX-32S-36, 77153032, TB 8M-32S-36, 2765501, PB8MCS-32-36, 32G-8M-36-MPB, 20839715, 8MPC32S36MPB

Click to Enlarge

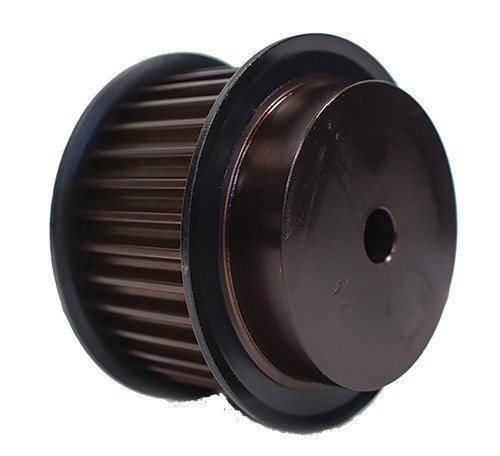

32-8MX36-6FS6, Timing Pulley, Steel, Black Oxide,

Learn more about 32-8MX36-6FS6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 32-8MX36-6FS6
Teeth 32
Tooth Style 8MX
For Belt Width (mm) 36
Type 6F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 3.208
Outside Diameter (in) 3.145
Flange Diameter (in) 3.543
Face Width (in) 1.859
Overall Length (in) 2.438
Hub Diameter (in) 2.734
Min. Bore (in) 0.500
Pulley Belt Width (in) 1.620
Unit System Inch
MOQ 1
Weight (lb) 4.32
Part Number Cross Reference PB8MX-32S-36, 77153032, TB 8M-32S-36, 2765501, PB8MCS-32-36, 32G-8M-36-MPB, 20839715, 8MPC32S36MPB
