32-8MXF12X1, Timing Pulley

32-8MXF12X1 - Cast Iron Powerhouse® MX Pulleys

32-8MXF12X1

32-8MXF12X1 - Cast Iron Powerhouse® MX Pulleys Line Drawing

Click to Enlarge

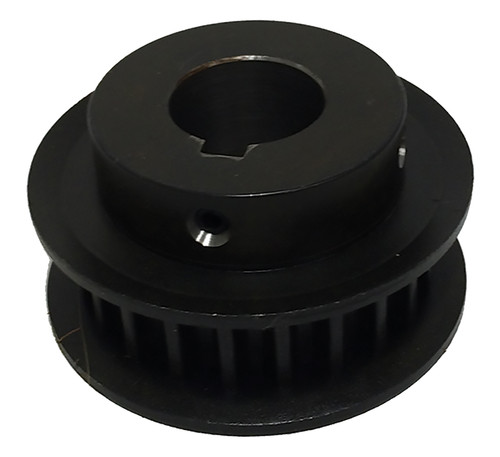

32-8MXF12X1, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 32-8MXF12X1 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 32-8MXF12X1
Teeth 32
Tooth Style 8MX
For Belt Width (mm) 12.00
Type 6F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type Finished Bore
Bore (in) 1.000
Bore Description 1 Inch Finished Bore
Pitch Diameter (in) 3.208
Outside Diameter (in) 3.145
Flange Diameter (in) 3.540
Face Width (in) 0.850
Overall Length (in) 1.422
Min. Bore (in) 0.5
Unit System Inch
P.D. (mm) 82.00
O.D. (mm) 79.90
MOQ 1
Weight (lb) 1.40
Part Number Cross Reference 32-8MXF12X1, 32-8MXF12X1
Set Screw Quantity 2
