32MP025MIA6, Timing Pulley

32MP025MIA6 - E-Z Lock Hub Aluminum Metric Pulleys

32MP025MIA6

Click to Enlarge

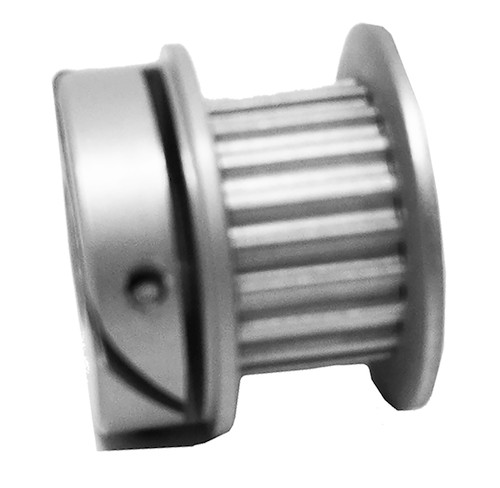

32MP025MIA6, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 32MP025MIA6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 32MP025MIA6
Teeth 32
Tooth Style MXL
For Belt Width (in) 0.2500
Type 6CI
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 6 mm Finished Bore
Bore (mm) 6.00
Pitch Diameter (in) 0.815
Outside Diameter (in) 0.795
Unit System Metric
P.D. (mm) 21.00
O.D. (mm) 20.20
Flange Diameter (mm) 25.40
Face Width (mm) 9.90
Overall Length (mm) 17.30
Hub Diameter (mm) 15.90
Number & Screw Size 1 x M3
MOQ 1
Weight (lb) 0.03
Part Number Cross Reference A 6D16M032DF6006, A6D16M032DF6006, 32MP025MIA6
