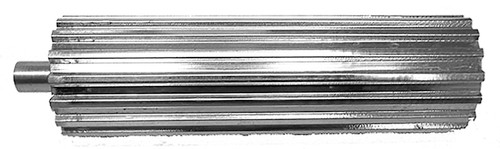

32T10-PS160A, Timing Pulley Stock

32T10-PS160A, A6A38M032T16, A 6A38M032T16, 32T10-PS-160

32T10-PS160A

32T10-PS160A, Timing Pulley Stock, Aluminum

Learn more about 32T10-PS160A Timing Pulley Stocks and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 32T10-PS160A
Teeth 32
Tooth Style T10mm
Material Aluminum
Pitch Diameter (in) 4.016
Outside Diameter (in) 3.937
Overall Length (in) 7.300
Unit System Metric
Min. Usable Length (in) 6.300
P.D. (mm) 102.00
O.D. (mm) 100.00
Min. Usable Length (mm) 160.00
Overall Length (mm) 185.00
MOQ 1
Weight (lb) 7.45
Part Number Cross Reference A 6A38M032T16, A6A38M032T16, 32T10-PS-160, T1032, 32T10-PS160A
Shank Length (in) 1.0000

Comparable to: A 6A38M032T16, A6A38M032T16, 32T10-PS-160, T1032, 32T10-PS160A
