33-14MX20-2012 Powerhouse® Mx Pulleys

33-14MX20-2012, 14MX-33S-20, B14MCS-33-20, 33G-14M-20-TL2012, 20839797

Product Details for 33-14MX20-2012

Comparable to: 33-14MX20-2012, 14MX-33S-20, B14MCS-33-20, 33G-14M-20-TL2012, 208397

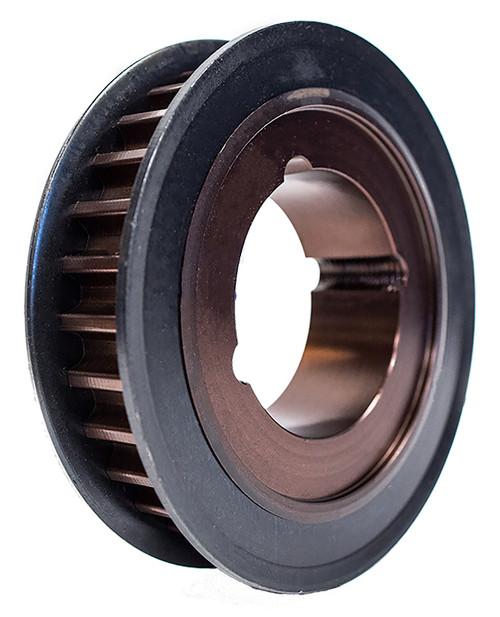

33-14MX20-2012, Timing Pulley, Powerhouse MX, 2012 Bushing, Cast Iron

Specifications

Product Number 33-14MX20-2012
Teeth 33
Tooth Style GT2 14mm
For Belt Width (mm) 20.000
Type A1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 2012
Pitch Diameter (in) 5.790
Outside Diameter (in) 5.680
Flange Diameter (in) 6.465
Face Width (in) 1.359
Overall Length (in) 1.359
Min. Bore (in) 0.500
Pulley Belt Width (in) 1.040
Unit System Inch
Bushing 2012
Max. Bore (in) 2.125
Weight (lb) 6.30
Part Number Cross Reference 33-14MX20-2012, 14MX-33S-20, B14MCS-33-20, 33G-14M-20-TL2012, 208397
