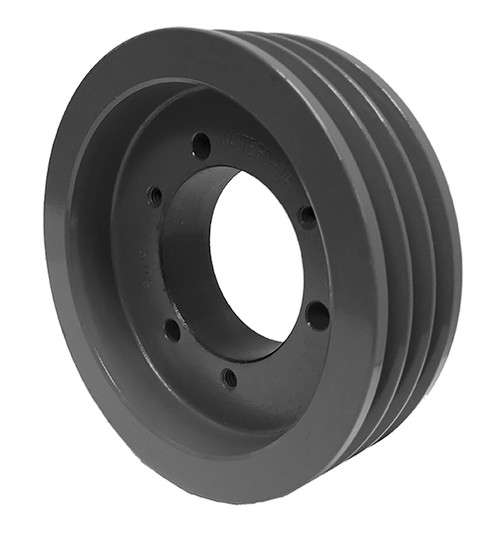

33V1900SF, V-Belt Pulley

33V1900SF

33V1900SF, V-Belt Pulley, Cast Iron

Learn more about 33V1900SF V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	33V1900SF
Type	D-3
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for SF Bushing
Pitch Diameter (in)	18.950
Outside Diameter (in)	19.000
Face Width (in)	1.500
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SF
MOQ	1
Sheave Type	3V
For Belt Type	3V
Weight (lb)	32.10
Part Number Cross Reference	QD3/3V19.00, 33V1900SF, 3V19.0-3-SF, 20180535, 3-3V19.00-SF SHEAVE, 3V1903, 3-3V19.00, 33V1900SF, 455164, 33V1900SF
Grooves	3
