33V265JA, V-Belt Pulley

33V265JA, 3V2.65-3-JA, 20180549, 3V2653, 3-3V2.65, 3/3V265JA

Product Details for 33V265JA

Comparable to: 33V265JA, QD3/3V2.65, 3V2.65-3-JA, 20180549, 3V2653, 3-3V2.65, 3/3V265

Click to Enlarge

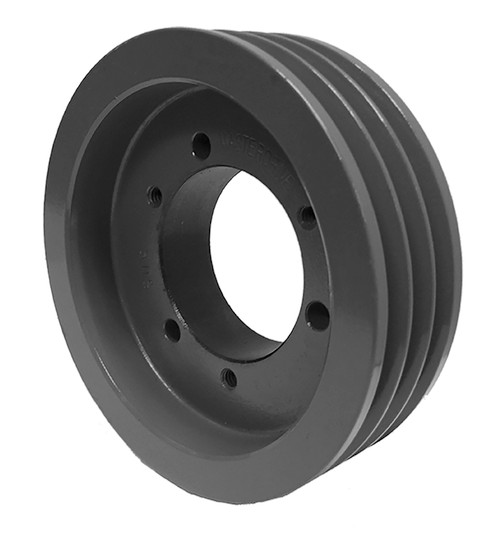

33V265JA, V-Belt Pulley, Cast Iron

Learn more about 33V265JA V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 33V265JA
Type D1
Material Cast Iron
Bore Type QD
Bore (in) JA
Pitch Diameter (in) 2.600
Outside Diameter (in) 2.650
Face Width (in) 1.500
Min. Bore (in) 0.500
Unit System Inch
Bushing JA
Max. Bore (in) 1.250
For Belt Type 3V
Weight (lb) 1.00
Part Number Cross Reference 33V265JA, QD3/3V2.65, 3V2.65-3-JA, 20180549, 3V2653, 3-3V2.65, 3/3V265
