33V280JA, V-Belt Pulley

33V280JA, 3V2.8-3-JA, 20180553, 3V283, 3-3V2.8, 3/3V280JA

33V280JA

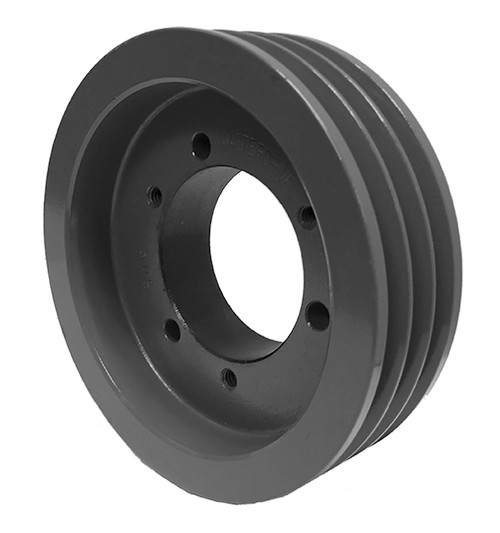

33V280JA, V-Belt Pulley, Cast Iron

Learn more about 33V280JA V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 33V280JA
Type D-1
Material Cast Iron
Bore Type QD
Bore Description Bored for JA Bushing
Pitch Diameter (in) 2.750
Outside Diameter (in) 2.800
Face Width (in) 1.500
Min. Bore (in) 0.5
Unit System Inch
Bushing JA
MOQ 1
Sheave Type 3V
For Belt Type 3V
Weight (lb) 1.40
Part Number Cross Reference QD3/3V2.80, 33V280JA, 3V2.8-3-JA, 20180553, 3-3V2.80-JA SHEAVE, 3V283, 3-3V2.80, 33V280JA, 455147, 33V280JA
Grooves 3

Related Products

Comparable to: QD3/3V2.80, 33V280JA, 3V2.8-3-JA, 20180553, 3-3V2.80-JA SHEAVE, 3V283, 3-3V2.80, 33V280JA, 455147, 33V280JA
