33V300SH, V-Belt Pulley

33V300SH, 3V303, 3-3V3.0, 3/3V300SH

Product Details for 33V300SH

Comparable to: QD3/3V3.00, 78723030, 3 3V 300 SH, 3-3V300.SH, 33V300SH, 3V3.0-3-SH PULLEY, 20180564, 3/3V3.00–SH, 3V303, 33V3.0, 3V3.0-3-SH, 3/3V300SH, 55520118, 3-3V3.0, 3-3V30

Click to Enlarge

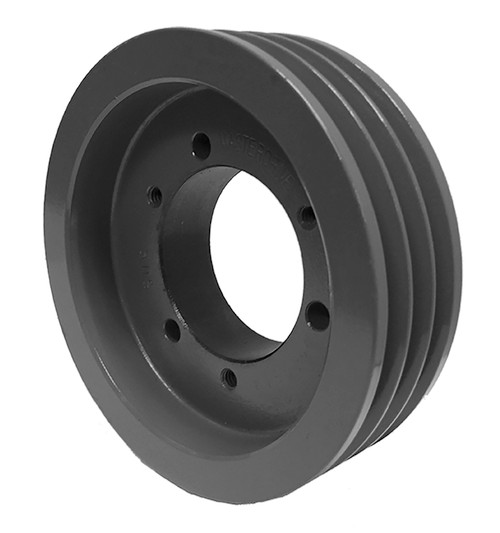

33V300SH, V-Belt Pulley, Cast Iron

Learn more about 33V300SH V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 33V300SH
Type E1
Material Cast Iron
Bore Type QD
Bore (in) SH
Pitch Diameter (in) 2.950
Outside Diameter (in) 3.000
Face Width (in) 1.500
Min. Bore (in) 0.500
Unit System Inch
Bushing SH
Max. Bore (in) 1.6875
MOQ 1
Sheave Type 3V
For Belt Type 3V
Weight (lb) 1.70
Part Number Cross Reference QD3/3V3.00, 78723030, 3 3V 300 SH, 3-3V300.SH, 33V300SH, 3V3.0-3-SH PULLEY, 20180564, 3/3V3.00–SH, 3V303, 33V3.0, 3V3.0-3-SH, 3/3V300SH, 55520118, 3-3V3.0, 3-3V30
Grooves 3
