33V335SH, V-Belt Pulley

33V335SH, 3V3.35-3-SH, 20180572, 3V3353, 3-3V3.35, 3/3V335SH

Product Details for 33V335SH

Comparable to: QD3/3V3.35, 78723033, 3 3V 335 SH, 3-3V335.SH, 33V335SH, 3V3.35-3-SH, 20180572, 3/3V3.35–SH, 3V3353, 33V3.35, 3/3V3350SF, 55519003, 3-3V3.35, 3-3V33, 3/3V335SH, 455166

Click to Enlarge

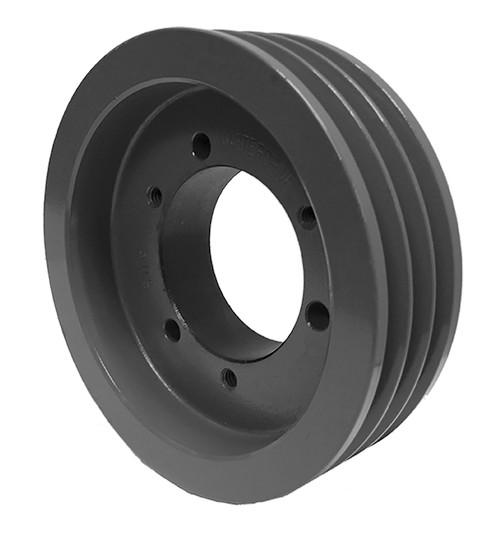

33V335SH, V-Belt Pulley, Cast Iron

Learn more about 33V335SH V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 33V335SH
Type D1
Material Cast Iron
Bore Type QD
Bore (in) SH
Pitch Diameter (in) 3.300
Outside Diameter (in) 3.350
Face Width (in) 1.500
Min. Bore (in) 0.500
Unit System Inch
Bushing SH
Max. Bore (in) 1.6875
MOQ 1
Sheave Type 3V
For Belt Type 3V
Weight (lb) 1.90
Part Number Cross Reference QD3/3V3.35, 78723033, 3 3V 335 SH, 3-3V335.SH, 33V335SH, 3V3.35-3-SH, 20180572, 3/3V3.35–SH, 3V3353, 33V3.35, 3/3V3350SF, 55519003, 3-3V3.35, 3-3V33, 3/3V335SH, 455166
Grooves 3
