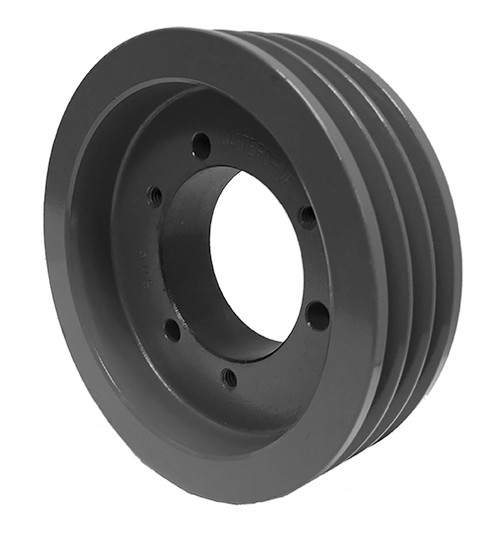

33V412SH, V-Belt Pulley

33V412SH, 3V4.12-3-SH, 20180586, 3V4123, 3-3V4.12, 3/3V412SH

33V412SH

33V412SH, V-Belt Pulley, Cast Iron

Learn more about 33V412SH V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 33V412SH
Type A-1
Material Cast Iron
Bore Type QD
Bore Description Bored for SH Bushing
Pitch Diameter (in) 4.070
Outside Diameter (in) 4.120
Face Width (in) 1.500
Min. Bore (in) 0.5
Unit System Inch
Bushing SH
MOQ 1
Sheave Type 3V
For Belt Type 3V
Weight (lb) 2.60
Part Number Cross Reference QD3/3V4.12, 33V412SH, 3V4.12-3-SH, 20180586, 3-3V4.12-SH SHEAVE, 3V4123, 3-3V4.12, 33V412SH, 455152, 33V412SH
Grooves 3

Related Products

Comparable to: QD3/3V4.12, 33V412SH, 3V4.12-3-SH, 20180586, 3-3V4.12-SH SHEAVE, 3V4123, 3-3V4.12, 33V412SH, 455152, 33V412SH
